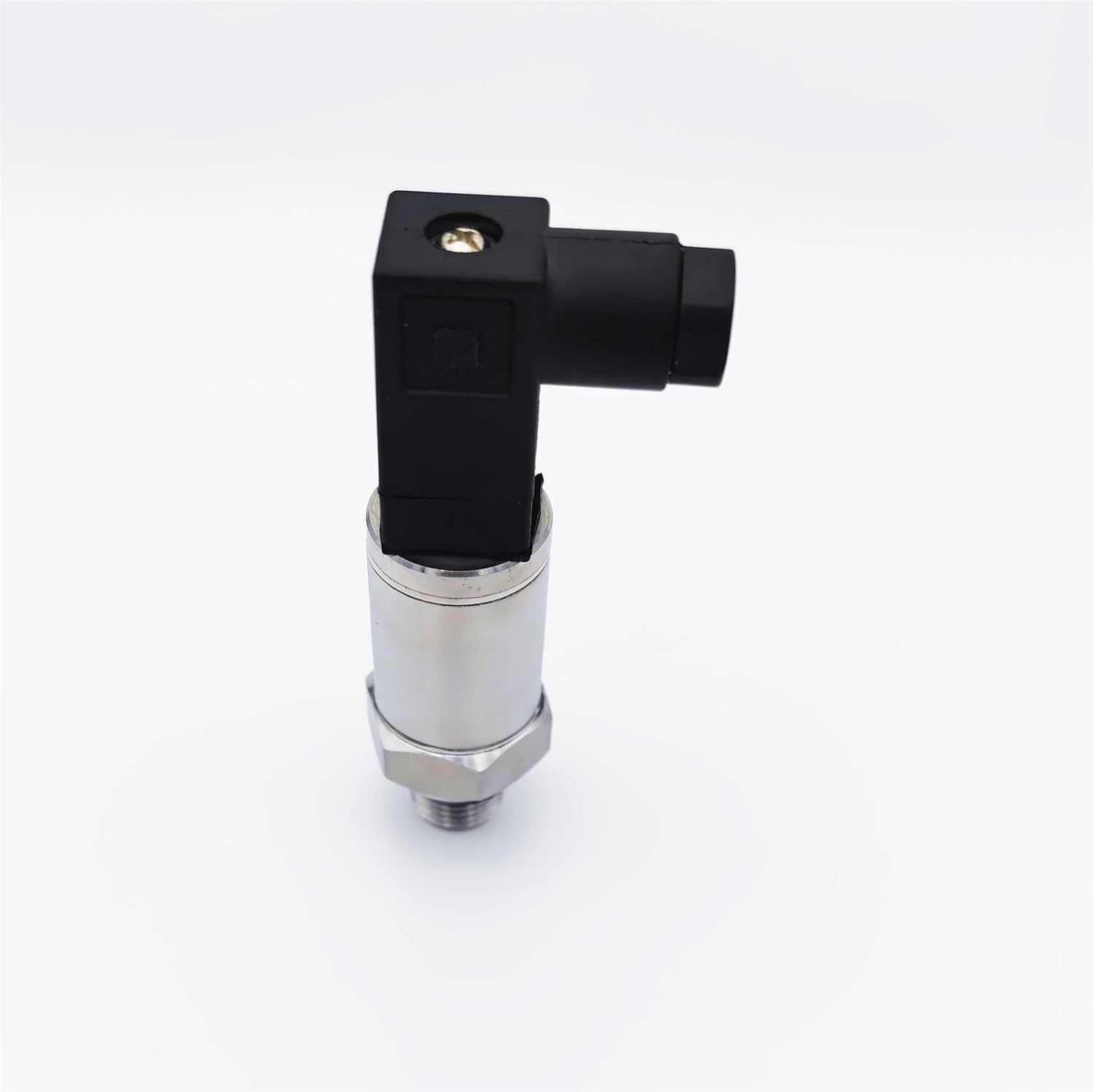

Pressure Transmitter G1/4 12-36V 0-10V 0-600bar Optional Stainless Steel Water Oil Fuel Gas air Pressure transducer Sensor(0-16Mpa)

SensorsDescriptionsYD6080 series of pressure transmitters adopts the international advanced piezoresistive sensing technology to produce, can be selected depending on the application different sensing core, all stainless steel package, suitable for most media, with good long-term stability, multiple signal outputs to choose from, it can be used in various environments and climates, so it is widely used in various fields.Features conformityLow cost and All stainless steel integrated structureSmall size, convenient to install and operate4-20mA, 0.5-4.5V, 0-5V, 0-10V, I2C, various voltage outputComplete surge voltage protection functionFor applications such as air, water, oilProvide , flexible customizationApplicationsIntelligent IoT constant pressure water supplyEngineering machinery, industrial process control and monitoringEnergy and water treatment systemsSteel, light industry, environmental protectionMedical, agricultural machinery, testing equipmentFlow measurement equipmentHydraulic and pneumatic control systemsAir-conditioning unit and refrigeration equipmentWater pump, air compressor pressure monitoringParametersMeasuring range: 0-600BarAccuracy: ±1.0%FSOutput signal: 0-10V (3 wire)Supply voltage: 12-36(24)VDCOperating temperature: -40-105 Compensation temperature: -20-80 Operating current: 3mATemperature drift (zero&sensitivity ±0.03%FS/Long-term stability: ±0.2%FS/yearResponse time: 3msOverload pressure: 150%FS Burst pressure: 300%FS Cycle life: 500,000 timesPressure medium: Non-corrosive liquid or gasPressure connection: G1/4, Other pressure connection is on requestElectrical connection: Hirschman DIN43650CHousing material: 304 Stainless SteelProtection class: IP65Explosion-proof class: ExiaCT6Weight: 0.120kgDimension (unit:mm)Electrical connectionPin1: Supply + (Red)Pin2: GND (Black)Pin3: Output + (White)Ordering informationDefault cable length: 1m .
